Hot Sale 2D Cnc Wire Bending Machine Cnc Automatic Wire Bending Machine Wire Forming Machine CAD Import Technical Parameters
Technical Parameter
Diameter
3-8mm
Cylinder Matching
0.5 mpa
No. of Redycers
3 PCS
Total power
8.2 KW
Cutting servo motor
2.0 KW
Feeding servo motor
3.1 KW
Bending servo motor
3.1 KW
Machine size
2700*950*1400 mm
No. of Motor
3 PCS
Machine Weight
650 kg

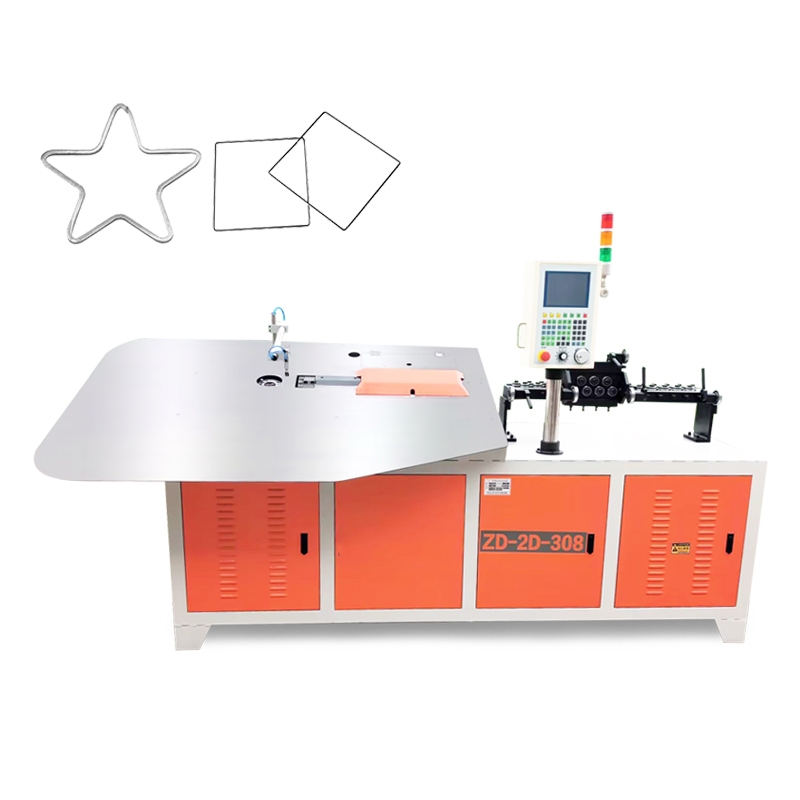

Product description Our 2D wire bending machine is equipped with automatic straightening, wire feeding, forming, and cutting functions, with a high degree of automation.The cutting knife and bottom knife mold are made of Cr12MoV steel, which is sturdy and durable. The equipment components of the 2D bending machine, such as thewire feeding wheel, straightening wheel, forming wheel, etc., are designed, processed, and produced by our factory. The wire feeding accuracy is high and the error is small. The accessories are of excellent workmanship, high wear resistance, and long service life.
