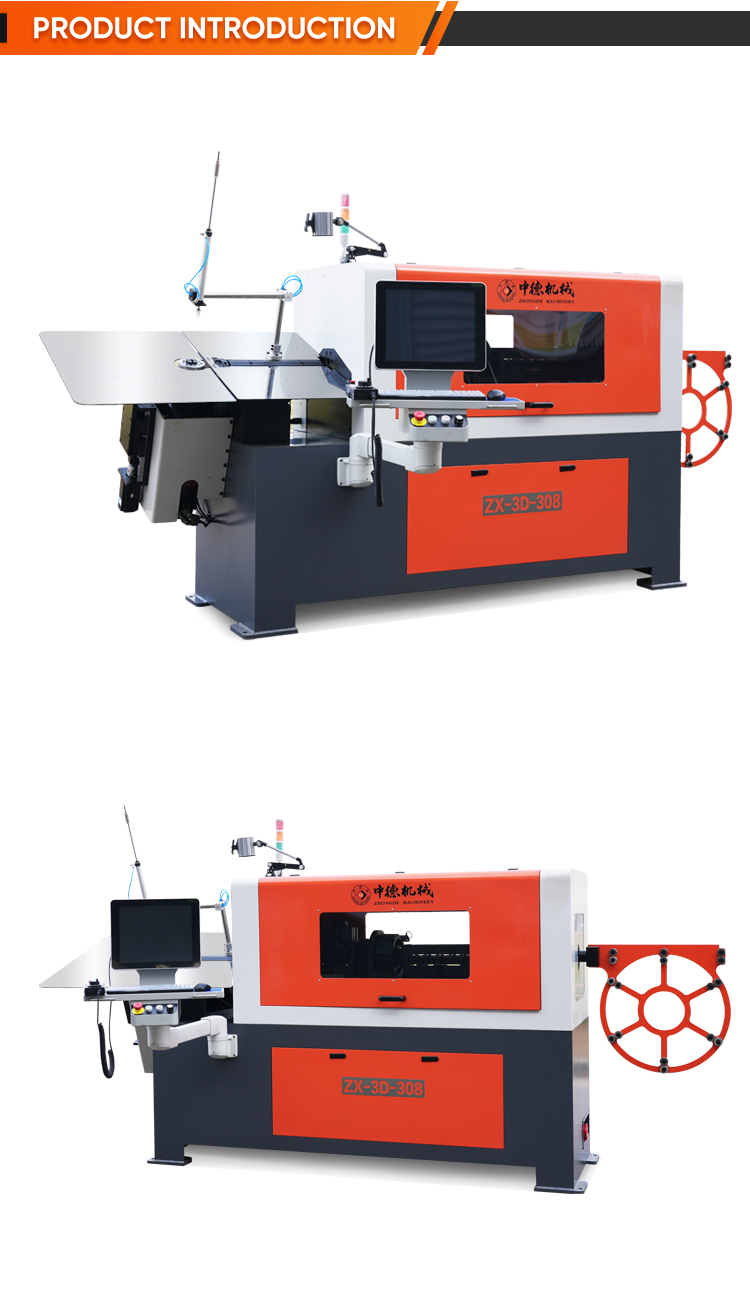

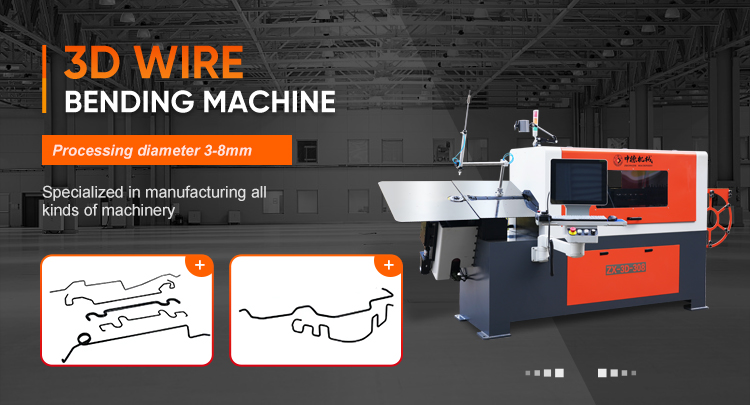

Automatic CNC 3D wire forming machine 3-8mm factory
| Model | ZX-3D-308 |
| Diameter | 3-8 mm |
| Number of axis | 7 |
| Feeding speed | 100m/min |
| Total servo motor power | 14.5 kw |
| Feeding servo motor power | 4.4 kw |
| Rotary servo motor power | 2.9 kw |
| Bending servo motor power | 2.4 kw |
| Platform lifting servo motor power | 1.0 kw |
| Cutting servo motor power | 1.0 kw |
| Internal and external mold lifting servo motor power | 1.0 kw |
| Inner and outer mold rotation servo motor power | 1.8 kw |
| Weight | 2000 kg |
| Dimension | 3900*1200*1700 mm |
