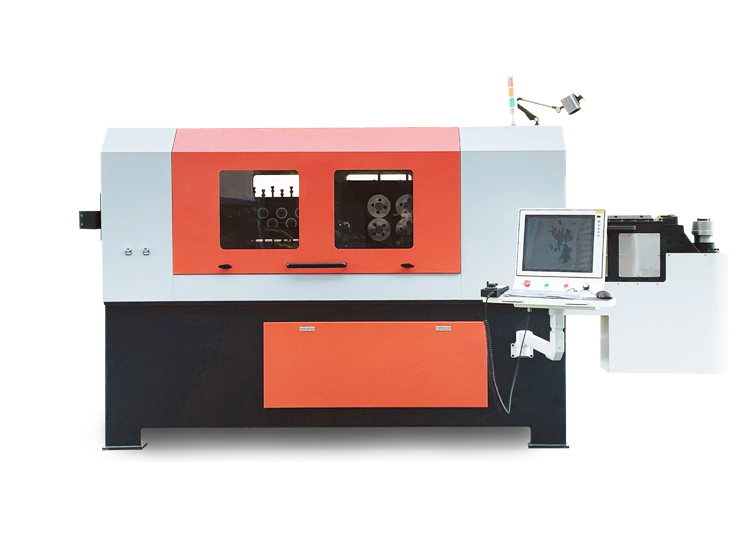

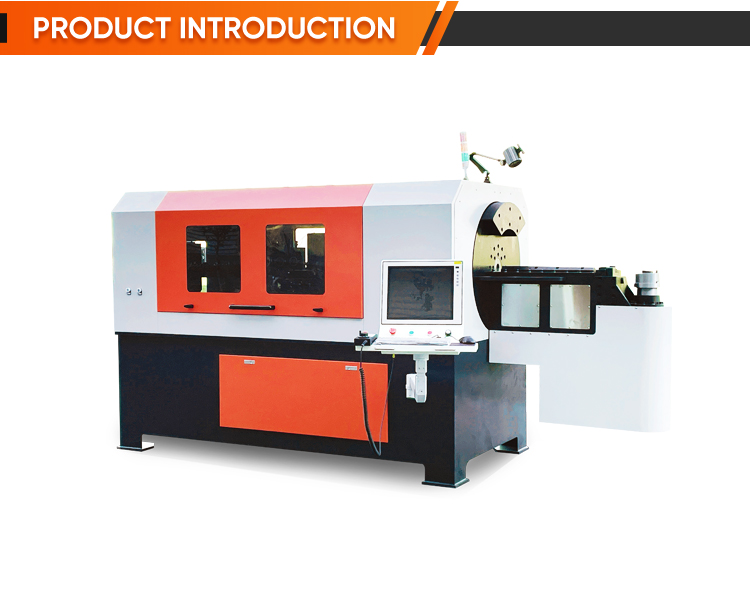

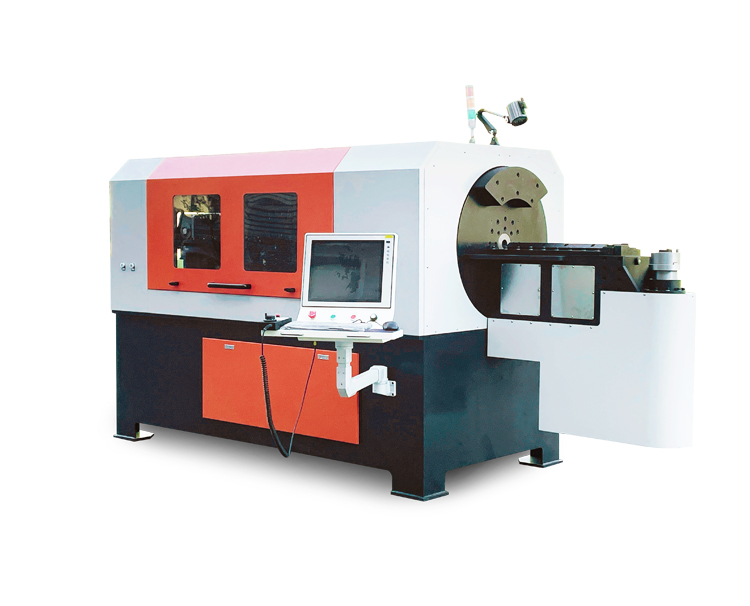

8-16mm Automatic Wire Bending Machine 3D CNC Wire Forming Machine
The ZD-3D-8016 wire bending machine is suitable for 8-16mm round and flat wire and iron wire. The machine adopts Yaqi servo motor and Yaqi CNC control system, and can store 10000 workpieces. It has functions such as wire feeding, turning, bending, cutting, and lifting, and is easy to operate. The 3D wire forming machine is equipped with a Taiwan Faston helical gear reducer, which has high precision and durability. The important components such as bearings and gears are all imported parts, with a one-year warranty. The 3D CNC wire bending machine is durable and reliable, with quality assurance, and can meet customers' needs for high standard wire forming production. At the same time, all machines come with operation manuals when they leave the factory. We have a complete after-sales service system, and our company provides on-site guidance, installation, debugging, and teaching services, or remote video training. The 3D wire bending machine comes with operation manuals that can also be read and operated by oneself.
Technical Parameter
Xingtai Zhongde Machinery Co., Ltd. specializes in producing various types of machinery. We have over ten years of experience in mechanical design and production, adhere to independent research and development, and have mechanical research and development patents. Our current products include wire bending machine with butt welding ,3D wire bending machines and 2D wire bending machines, and we can produce according to customer requirements. These products have been exported to the United States, Germany,Pakistan, and Australia. We have 20 machine designers and engineers who can customize machines to meet customer requirements.Our factory located in Xingtai, Hebei province, in a district known as machinery hometown,occupying an area of 30,000 square meters. We have more than 100 sets of equipments, which are operated by 300 workers. We also have a highly qualified technical team engaged in developing new items and dealing clients customized orders. Our annual export amount is over USD9,000,000. Having developed more than 500 kinds of machinery in the past 20 years, we are marketing all series under our brand. Working in line with the principle of " integrity, quality, service" we have already obtained ISO certification, meanwhile, all products meet the requirements of CE standards, with good quality, our products enjoy a high reputation among all clients, having cooperate with many famous machinery importers. Our company promise: Reasonable prices, short production time and satisfactory after-sales service. We are confident in producing the best machinery and service, please feel free to contact with us if you are interested in any of our machinery. We are honored to have opportunity of establishing a business relationship with your esteemed company.
Our Service
Our Customers
Exhibition
The ZD-3D-8016 wire bending machine is suitable for 8-16mm round and flat wire and iron wire. The machine adopts Yaqi servo motor and Yaqi CNC control system, and can store 10000 workpieces. It has functions such as wire feeding, turning, bending, cutting, and lifting, and is easy to operate. The 3D wire forming machine is equipped with a Taiwan Faston helical gear reducer, which has high precision and durability. The important components such as bearings and gears are all imported parts, with a one-year warranty. The 3D CNC wire bending machine is durable and reliable, with quality assurance, and can meet customers' needs for high standard wire forming production. At the same time, all machines come with operation manuals when they leave the factory. We have a complete after-sales service system, and our company provides on-site guidance, installation, debugging, and teaching services, or remote video training. The 3D wire bending machine comes with operation manuals that can also be read and operated by oneself.
Technical Parameter
| Model | ZD-3D-8016 |
| Wire feeding wheels | 5 sets |
| Armtuning Servo Power | 5.5 KW |
| Feeding Servo Power | 9.9 KW |
| Cutting Servo Power | 5.5 KW |
| Bending Servo Power | 5.5 KW |
| Lifting Servo Power | 2.0 KW |
| Diameter | 8-16mm |
| No of Axis | 5 |
| Total Power | 28.4KW |
| Machine Weight | 4500 kg |
| Dimensions | 3700*1500*2000mm |
